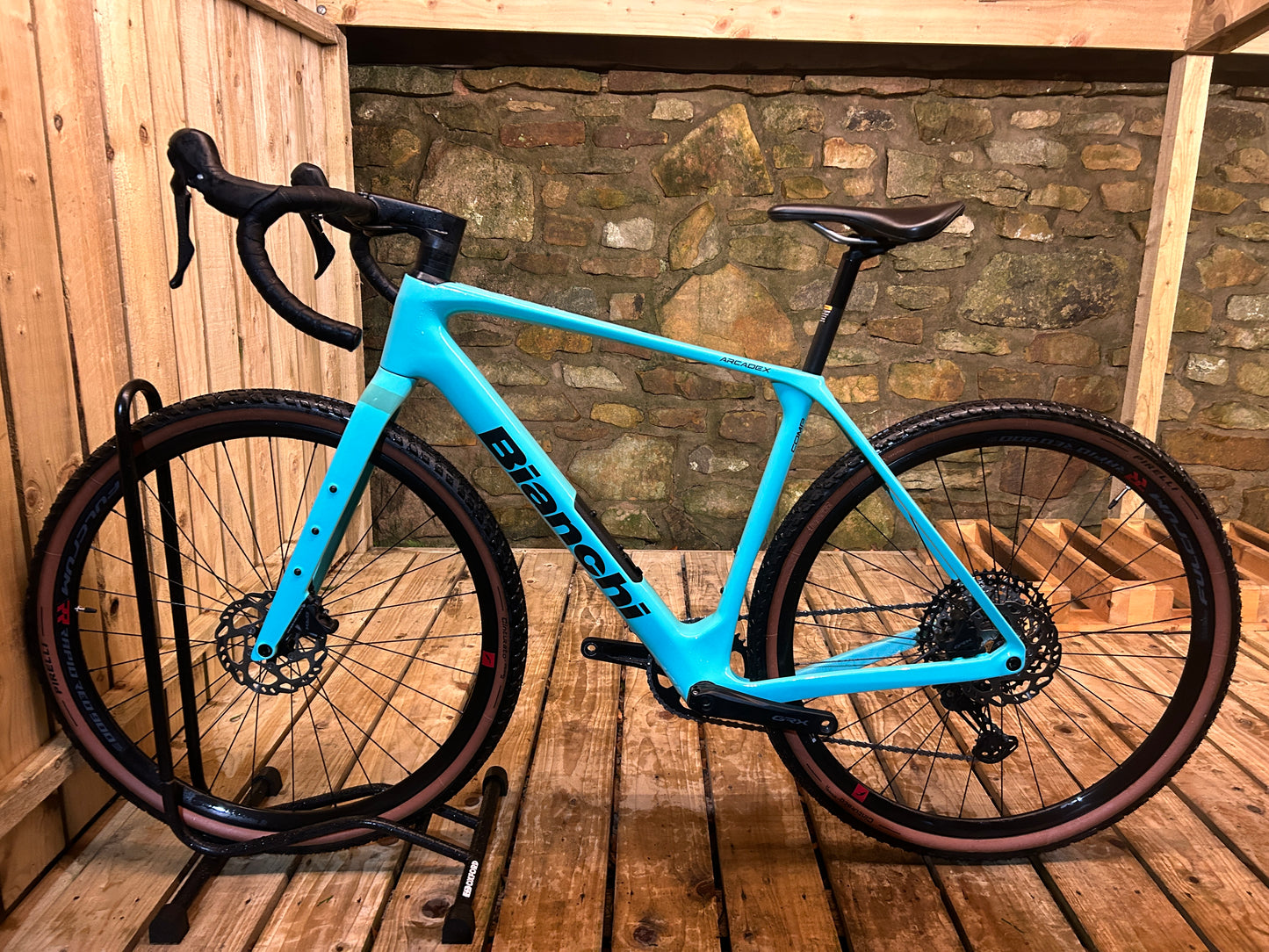

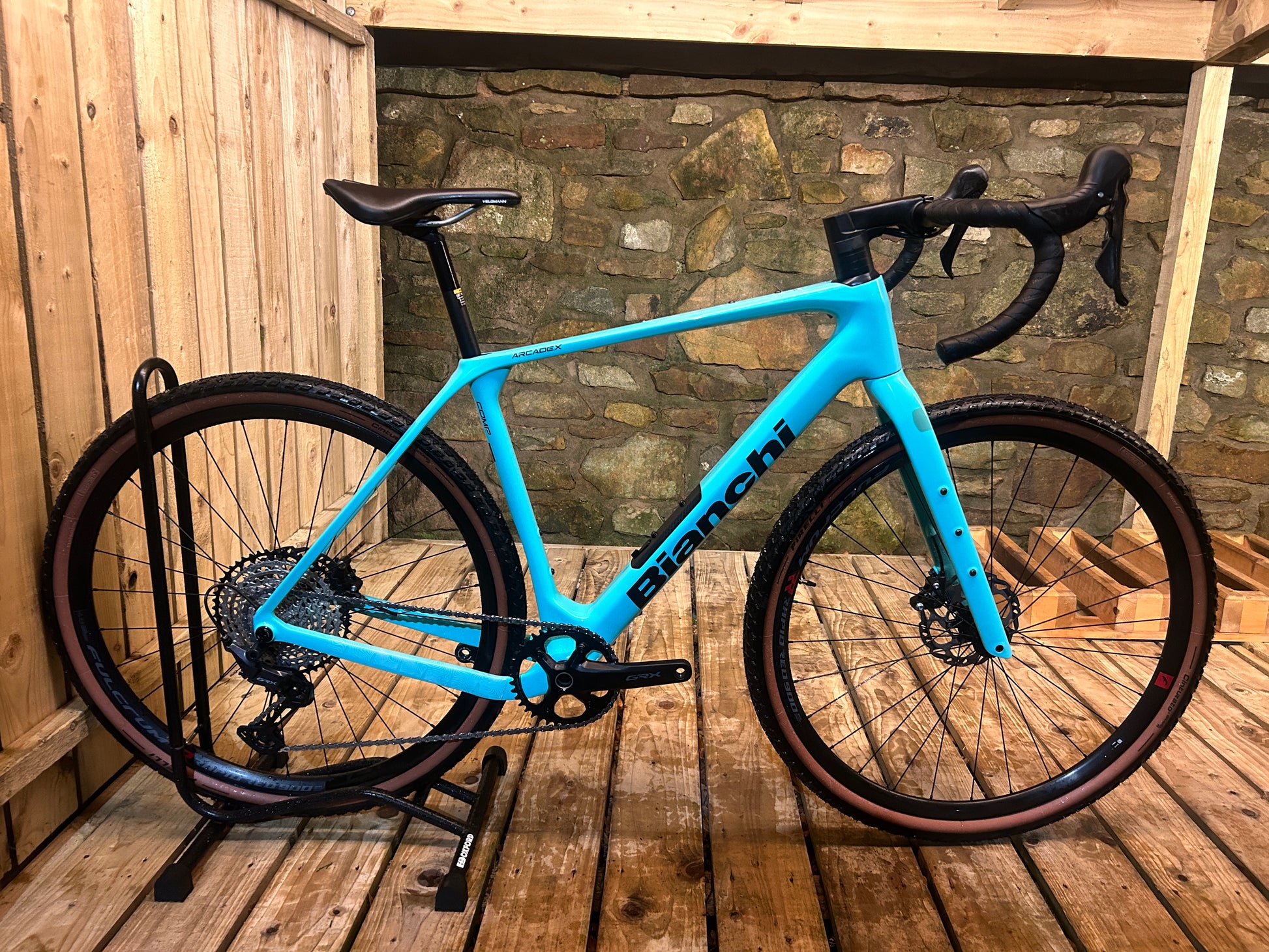

Bianchi Arcadex Comp GRX 610/822 Gravel Bike Celeste - Available in All Sizes

Bianchi Arcadex Comp GRX 610/822 Gravel Bike Celeste - Available in All Sizes

All Sizes Available from Ebike Hire Centre (Gisburn Forest)

Please call us on 07596 148836 to discuss or submit an enquiry here.

The Arcadex Comp is the ideal bike for riders who want to start riding further beyond the boundaries of their comfort zone.

• Frameset

  1. Frame

     Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:

  2. Fork

     Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite

  3. Headset

     Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal

• Drivetrain

  1. Shifters

     Shimano GRX 610 ST/BL-RX610

  2. Rear Derailleur

     Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T

  3. Crankset

     Shimano GRX 610 FC-RX610-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)

  4. Bottom Bracket

     Shimano SM-BB72-41B, press fit

  5. Chain

     Shimano CN-M7100

  6. Cassette

     Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline

• Brakes

  1. Brakes

     Shimano Hydraulic Brake, BR-RX400

  2. Rotor

     Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

• Wheels

  1. Wheels

     Velomann V24G, Aluminium rim, profile height 24mm, 700x24c, 24h

  2. Tire

     Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall

• Cockpit

  1. Stem

     Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)

  2. Handlebar

     Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)

  3. Grips / Extensions

     Bianchi Hexagon tape 2.5mm thickness, Full black

• Saddle

  1. Seatpost

     Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61)

  2. Saddle

     Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel lenght: 250mm width: 149mm

• Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
