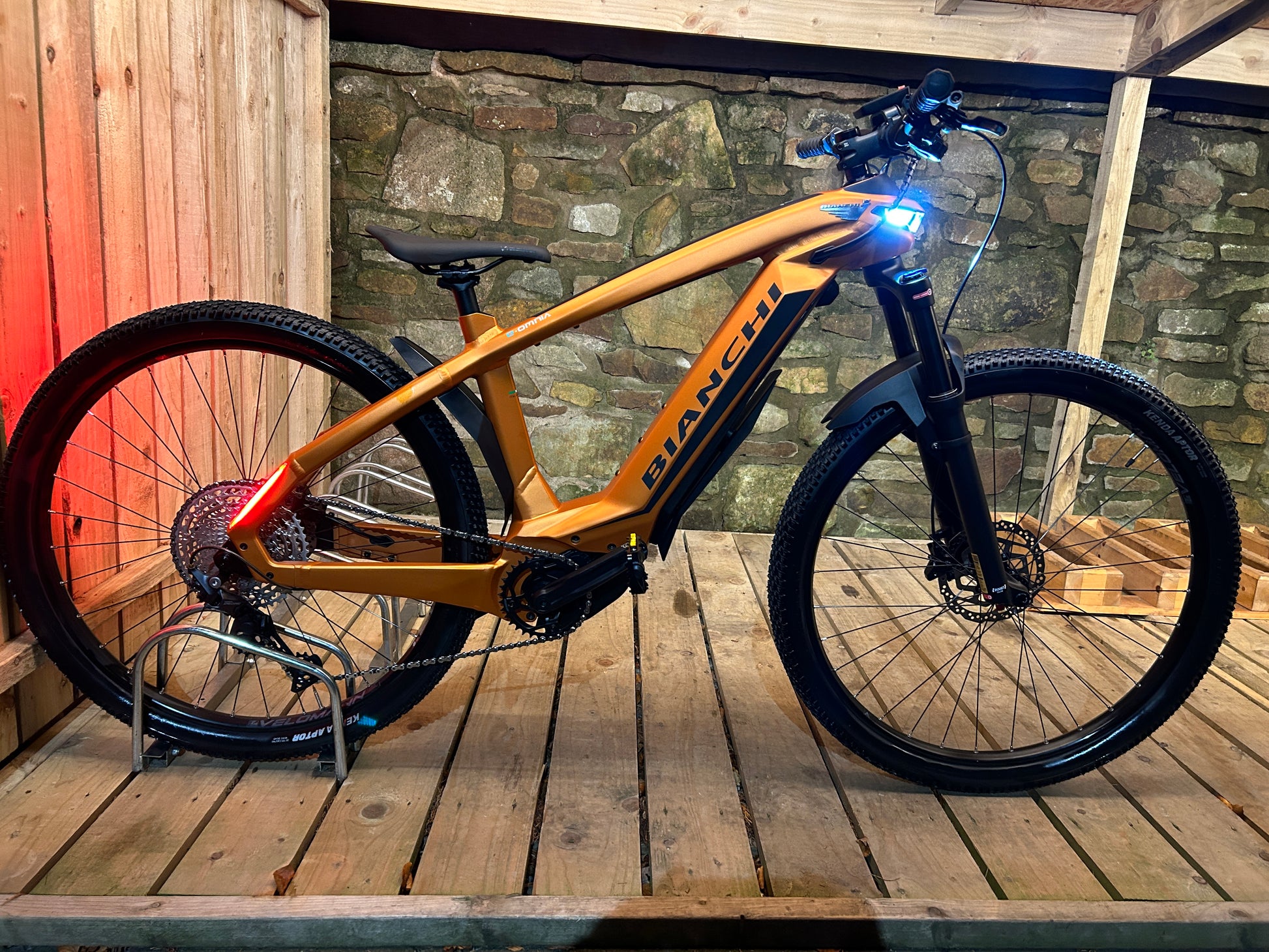

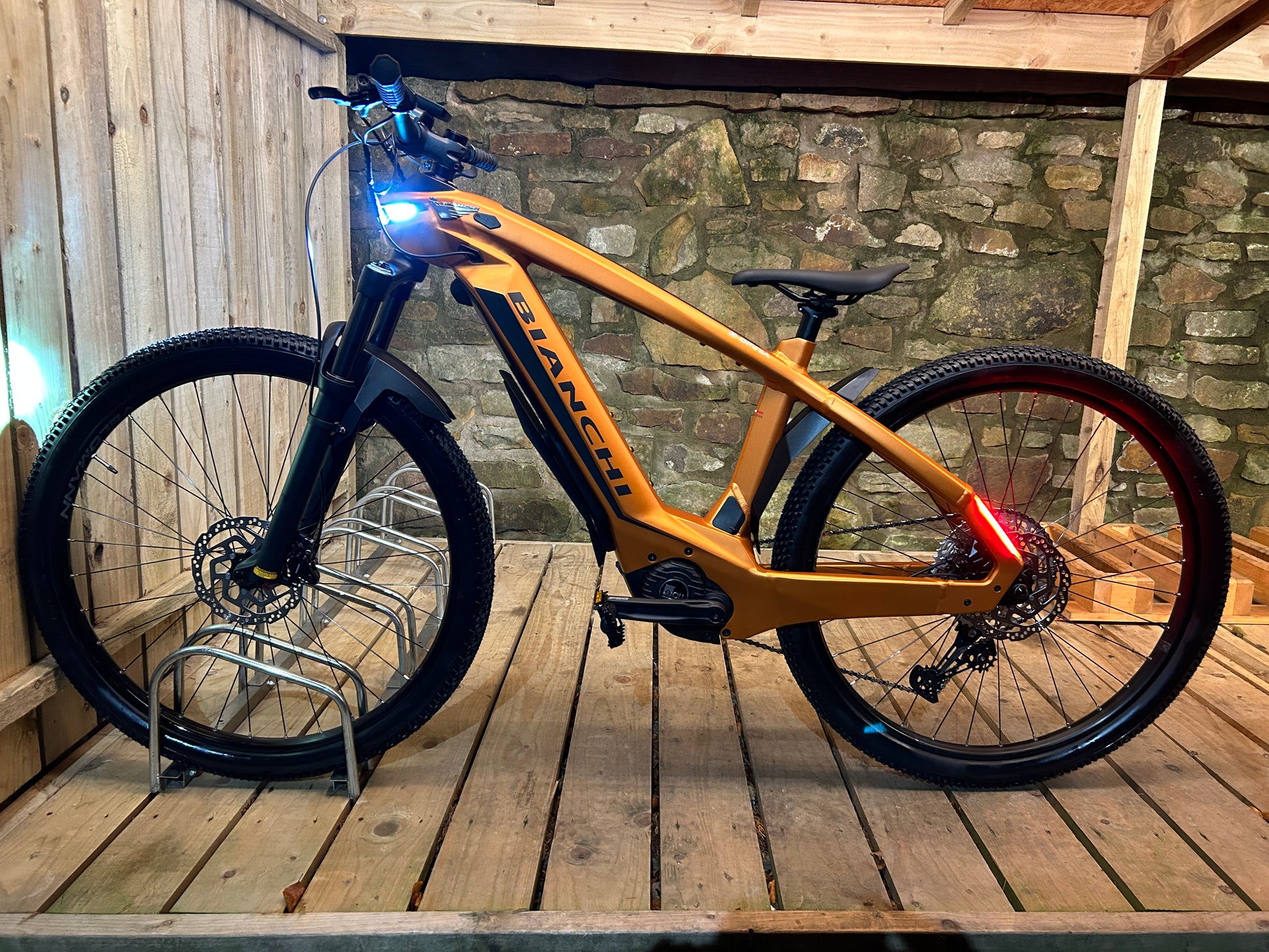

2024 Bianchi E-OMNIA X TYPE Unisex Hybrid MTB 120mm Suspension, 250W Battery, 90Nm Motor

All Sizes Available from Ebike Hire Centre (Gisburn Forest)

Ebike Hire Centre are now proud to be a Bianchi Approved Main Dealer

Please call us on 07596 148836 to discuss or submit an enquiry here.

--

ENGINEERED FOR RIDERS WHO LOVE SHRED TRAILS

The e-Omnia X-Type is an e-mtb hardtail designed to excel on anything from fire roads to mountain trails.
It’s executed in the gravity-casted aluminum so it’s still exceptionally stiff with great power transfer. The frame is engineered around 29 inch wheels, and the front suspension packs 120mm of travel.

The design of the frame also allows the bikers to install a double battery to have a range that can reach 195 kilometers.

• MOTOR UNIT

  1. MOTOR

     OLI Edge, 90Nm, 250W Display High Vision

  2. BATTERY

     Internal battery 630Wh

• FRAMESET

  1. FRAME

     E-MTB OMNIA X Type HT Alu 29" BIANCHI 120mm front suspended, 1.5" tapered HT, seatpost diam.31,6mm, integrated seat clamp, PM 180mm dropout thru axle 12x148mm, internal cable routing inside DT, sizes 43,48,53 (MD; LG; XL)

  2. FORK

     Sram XCR34 AIR Boost LOR DS 29" 120mm, 1.5" tapered HT, 34mm black stanchions, PM 180mm disc mount, 15X110 TA 15AH2-110

  3. HEADSET

     FSA NO.55R/558 1.5"

• DRIVETRAIN

  1. SHIFTERS

     Shimano, SL-M5100-R, DEORE, 11-SPEED

  2. REAR DERAILLEUR

     Shimano, RD-M5100, DEORE,SGS 11-SPEED

  3. CRANKSET

     FSA CK-320/IS Die cast AL crank 165 mm ISIS

  4. BOTTOM BRACKET

     included in the motor

  5. CHAIN

     KMC e11T EPT, 11sp

• BRAKES

  1. BRAKES

     Shimano, BL-M4100, BR-MT410, RESIN PAD

  2. ROTOR

     Shimano, SM-RT10, M 180MM, W/LOCK RING

• WHEELS

  1. WHEELS

     Velomann 29”, 30mm 29”, 489g, 32 hole drilling, Disc Only

  2. REARHUB

     Formula CL-3248 for Center Lock, 32h, 12x148mm TA, HG, 2SB

  3. FRONTHUB

     Formula CL-811 for Center Lock, 32h, 15x110mm TA, 2SB

  4. TIRE

     Kenda Booster 29x2.6, 30tpi

• COCKPIT

  1. STEM

     Velomann, 1,1/8 x diam.31,8mm, 55mm for 15,17,19,21"

  2. HANDLEBAR

     Velomann, width 740mm, diam.31.8mm, rise 15mm, backsweep 9°

  3. GRIPS

     T-One Rock T-GP34

• SADDLE

  1. SEATPOST

     Velomann, lenght 350mm for SM size and 400mm for MD, LG, diam.31,6mm, 0mm seatback

  2. SADDLE

     Velomann, carbon steel rail, 262x145
